Waterproof
Anti-interference
Heat Dissipation
Corrosion Resistance
Lightning Protection
Dustproof
Stable
Modular installation
V Series custom nema 4 vented waterproof rainproof dustproof outdoor sheet metal enclosure box electrical enclosure box
External dimension | 300*400*150MM(Can be customed) | Internal dimension | 250*350*140MM(Can be customed) | |||
Weight | 7KG | Model | O-3415 | |||
Protection Level | Nema 4 | IP Degree | IP65 | |||
Quality Guarantee | 10 Years | Processing Methods | shield | |||
Installation | Pole/Wall Mounting/Ground | Operating Temperature | -40℃ to 120℃ | |||
Operating Humidity | ≤90%RH | Operating Voltage | AC100~AC250V | |||
Operating Power | 40-80W | Color | Light gray+dark gray | |||
Surface Treatment | Powder Coating | Product Name | Outdoor Electrical Enclosure | |||
- 【Cold-rolled Steel Material】 This nema enclosure with cold-rolled steel plate and removable backplane is durable and solid, convenient for install electrical equipments. The surface of the outdoor electrical box adopts powder spraying and crystal plating technology, which is not easy to rust and deform.
- 【Ventilation and Heat Dissipation】 This vented outdoor enclosure box will come with a 12v cooling fan (80x80x10mm), and there are 2 ventilation slots on each side, which helps to dissipate the heat quickly. In addition, there are also 3 holes are drilled at the bottom of the electrical junction box for entering cold air or pass through the cables.
- 【Wall/Pole Mounted】 The outdoor waterproof electrical box will come with stainless steel screws and hoops, you can choose suitable accessories to install them on wall or on the pole. There is also a cam lock installed on the box to ensure the safety for outdoor use of the electrical enclosure box. The overall size of the electric junction box is 15.7″x11.8″x7.9″.

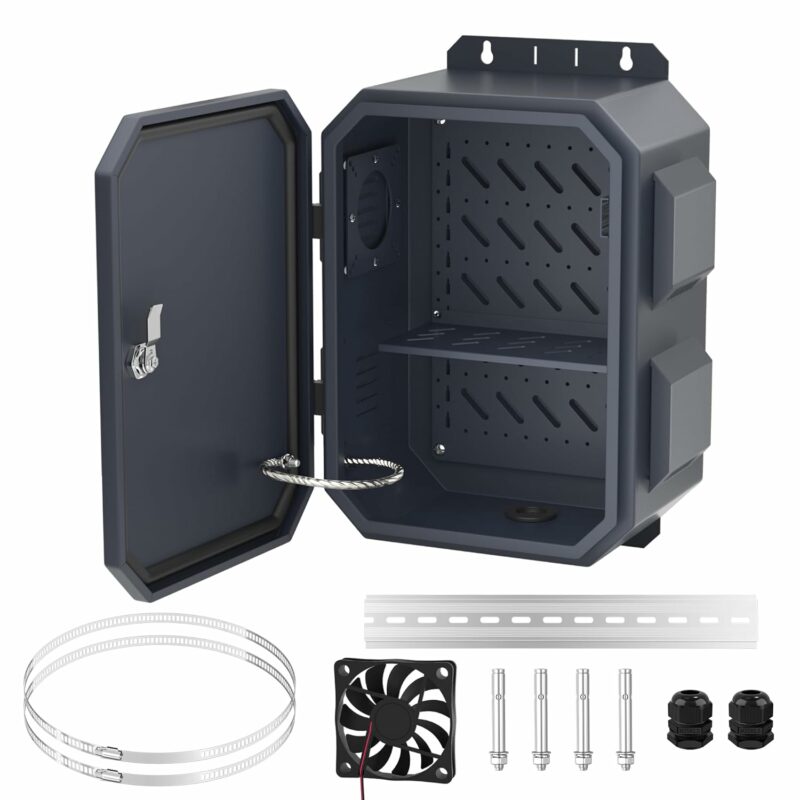

- 【All Necessary Accessories Included】 This waterproof junction box kit includes all necessary accessories, such as 12v cooling fan, steel plate, din rail, cable gland, and so on. Helps you save much time on selecting and purchasing the parts you may need, make the outdoor junction box can be installed and used once it arrives.
- 【Wide Application】 The outdoor electrical box weatherproof is made of upgrade metal material, which is sturdy and heavy duty, very durable for use. And the waterproof level of this electronic project box can reach IP65 and effectively prevent water, wind, rain, snow and dust, great to use in outdoor harsh environment. This waterproof electrical box outdoor is suitable for controllers, routers, contactors, Christmas lights, pumps, relays, security camera, alarm system components, solar system, RV, POE switch, etc.
Applications: Factories, data centers, solar farms, and HVAC systems.
