A Series

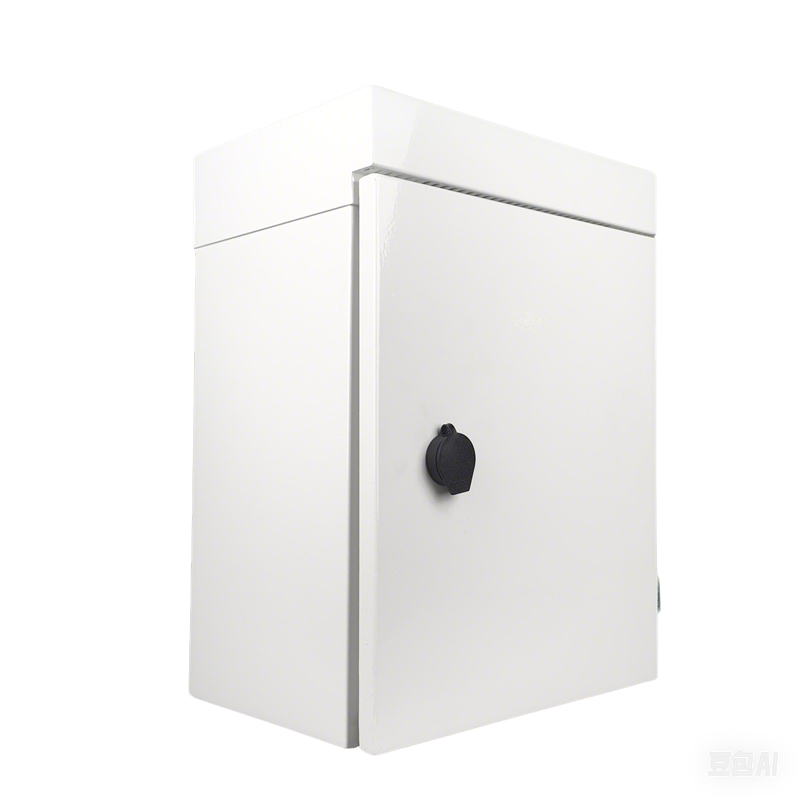

Waterproof & Rust-Proof Electrical Distribution Box – Engineered for Simplicity

Ensure uninterrupted power distribution in any environment with our heavy-duty waterproof electrical enclosures. Crafted from galvanized steel with advanced anti-corrosion coating, these boxes defy harsh weather, humidity, and chemical exposure, offering unmatched rust resistance. The IP65-rated sealing guarantees total protection against dust, rain, and splashes, even in extreme outdoor conditions.

Designed for effortless installation, our distribution boxes feature pre-drilled mounting holes, intuitive cable entry points, and a tool-free latch system. The modular interior allows quick customization for circuit breakers or terminals, saving time and labor costs. Ideal for industrial, marine, or residential projects, these enclosures combine rugged durability with user-friendly design.

Category:

A Series custom nema 4 vented waterproof rainproof dustproof outdoor sheet metal enclosure box electrical enclosure box

External dimension
400*600*200MM(Can be customed)
Internal dimension
350*550*190MM(Can be customed)
Weight
12.5KG
Model
T-4620
Protection Level
Nema 4
IP Degree
IP65
Quality Guarantee
10 Years
Processing Methods
shield
Installation
Pole/Wall Mounting/Ground
Operating Temperature
-40℃ to 120℃
Operating Humidity
≤90%RH
Operating Voltage
AC100~AC250V
Operating Power
40-80W
Color
Light gray+dark gray
Surface Treatment
Powder Coating
Product Name
Outdoor Electrical Enclosure
This equipment box is an all-weather outdoor electrical equipment protection box designed for open-air outdoor environment. It has rainproof, dustproof, ventilation and heat dissipation, anti-ultraviolet (aging resistance), anti-theft, anti-rust (high humidity area), acid and alkali resistance Corrosion (seaside and factory environment), anti-electromagnetic interference (anti-lightning EMP), modular structure design in the box, electrical equipment can be installed vertically or horizontally according to the situation.
It can be used for both indoor and outdoor widely. And it can be used in various industries, like Telecommunications and communications, video surveillance, public safety, , dust noise monitoring, artificial intelligence, new source energy, etc.
Has good ventilation and heat dissipation performance. The main body of the box has a complete welded frame structure and a high-specification electromagnetic shielding design to meet the protection of weak current equipment in outdoor complex environments. The box adopts an independent top cover structure to form a condensation cavity on the top of the box, which also plays the role of top heat insulation.
Heavy duty Galvanized Plate is stable, The whole box body adopts seamless welding. Material thickness: 0.05″(1.2mm)
The product doesn’t include install accessories. It can be installed on ground, wall or pole.
